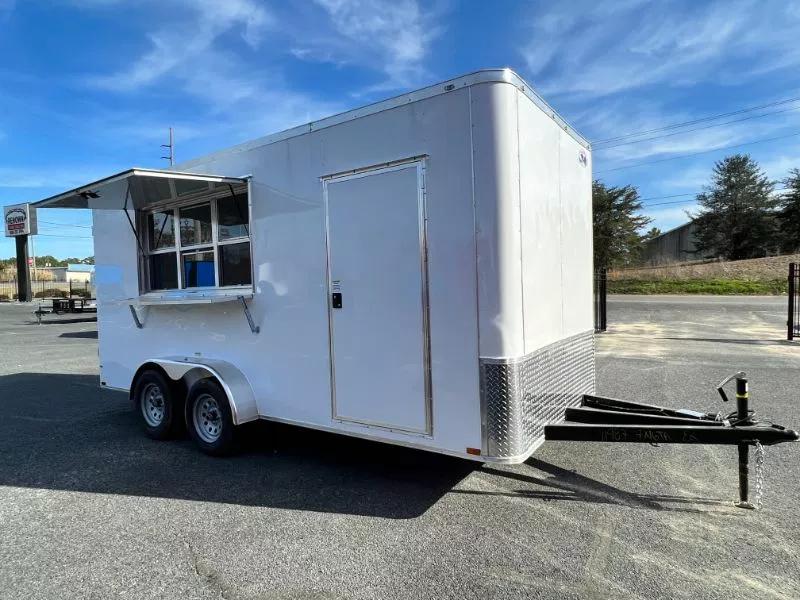

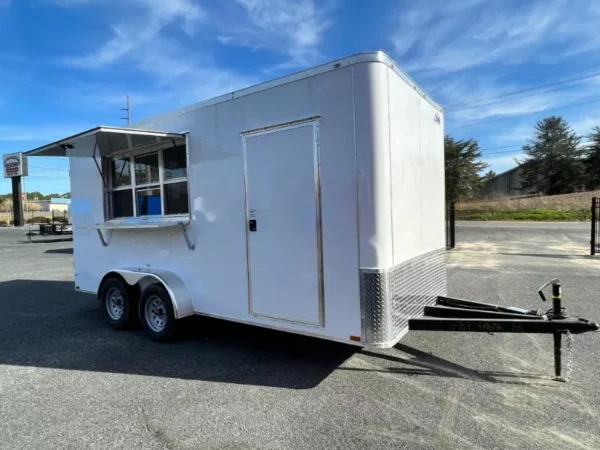

7X16 TA CONCESSION TRAILER STARTER

SPECIFICATIONS

• 9” Extra Height
• 60” Extended Triple Tube Tongue
• 3’ X 6’ Concession Door & Window
• 13,500 BTU A/C
• 18” X 6’ Exterior Fold Down Shelf Under the Window
• Mill Finish or White Metal Walls & Ceiling
• Water Package with a 3 Basin Sink and Handwash Sink
• Black & White Checkered Floor or Rubber Treadplate Flooring
• 50 AMP Electrical Package
• Additional 4 Receptacles

FLOOR PLAN:

7X16TA CONCESSION TRAILER STARTER PACKAGE

Customize your trailer exterior with options for a V-nose or Flat Front and a wide variety of color choices. If you feel this size doesn’t suit your needs, don’t worry! We have a variety of sizes available. Contact us for further information and we’ll help you find the perfect fit for your business!

STANDARD FEATURES:

• 6’3″Interior Height
• Tandem Axle Use 2×4 Main Rails
• 4-Way Bargman Plug / 2″ Coupler For Single (Idle Axle)
• 7-Way Plug/ 2 5/16″ Coupler For Tandem Axle
• 32×68 RV Side Door
• 16″ O.C Walls And Floor Crossmembers
• 1×1 1/2″ Steel Tube In Walls And Ceiling
• 3/8 Plywood Wall Liner
• 3/4 Plywood Floor Decking
• Drop Leaf Spring Axles/EZ Lube
• LED Strip Trail Lights
• 3500lb Axles (Not 5W And 6W Single Axles)
• Chrome Center Lug Cover
• V-Nose With ATP Vertical Trim
• .024 Metal: White/Black/Red/Silver/Pewter
• 24″ ATP Stoneguard On V Nose
• Galvalume Roof
• Z Tech Undercoated Frame
• Plywood Painted Underneath
• Silver Mod Radial
• 2000lb Tongue Jack
• Choice Of Ramp Door Or Double Barn Door
• Choice Of Roof Vent Or Side Vent
